BMD-SMD-TMD Series

Pneumatic Condensate Drain

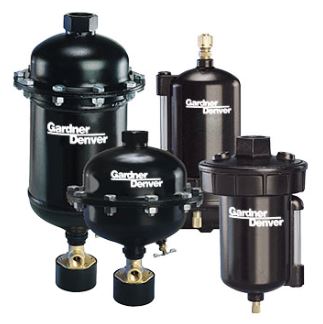

Gardner denver BMD-SMD-TMD series pneumatic condensate drains

Gardner Denver pneumatically operated condensate drains are designed to ensure that liquid oil and water condensates are discharged from the compressed air stream. The SMD-TMD-BMD Series features a no air-loss actuated design which operates on demand. The discharge port closes before any compressed air is lost. Air powered pistons are used for positive opening and closing of discharge port.

SMD

Features

  • Maximum Working Pressure: 175 PSIG
  • Maximum Operating Temperature 120°F
  • Economical drain for light to medium duty service
  • No air loss level actuated design — operates on demand
  • Discharge rates of .04 (20cc) per operation (0.3gal/hr - 1.2 liter/hr)
  • Built-in stainless steel screen protects discharge port from clogging
  • BMD/TMD

  • Maximum Working Pressure: 500 PSIG (depending on unit, see literature)
  • Maximum operating Temperature: 150°F
  • Discharge rates of 3-24 gallons/hour
  • Rugged drain for heavy duty service and heavily contaminated condensate
  • Large discharge port prevents clogging
